Split-Level House

Split-Level House
Qb³
Philadelphia, Pennsylvania

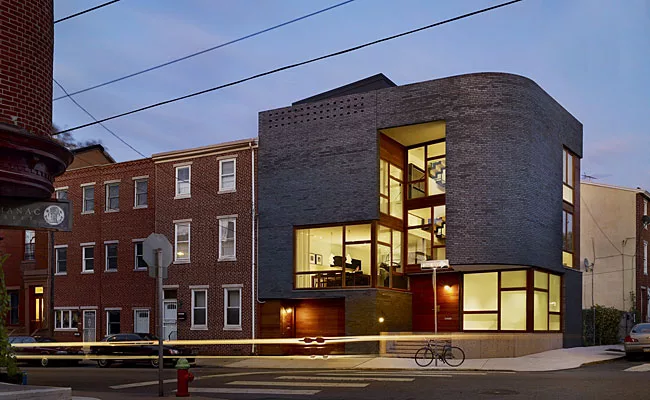

The facade, with a bullnose corner, presents a striking contrast of masses and voids: Gray brick and sapele wood cladding are punctuated by glass expanses with mahogany frames that seem to defy structural loads.
Photo © Todd Mason/Halkin Architectural Photography

Split-Level House
Qb³
Philadelphia, Pennsylvania

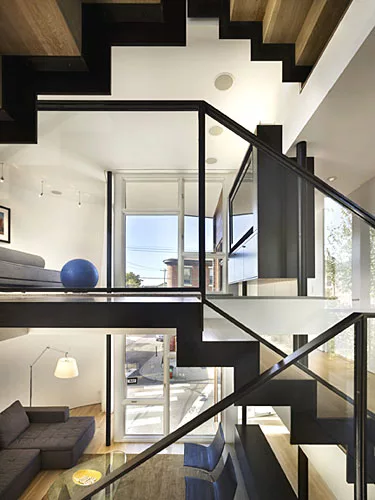

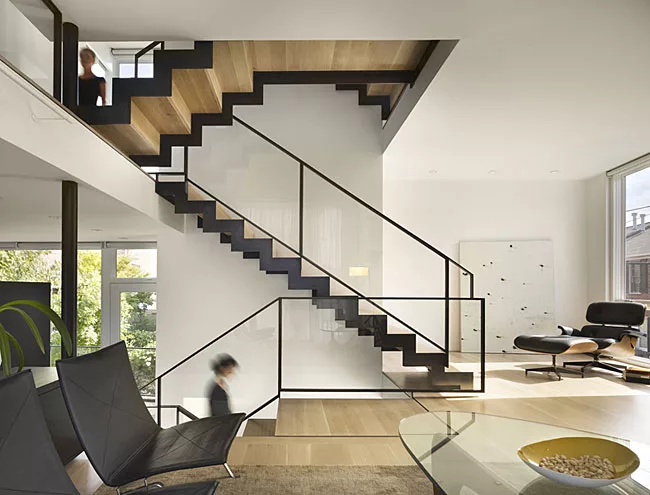

The interior of the Philadelphia townhouse spirals around a sparely designed open stair with patinated steel railings and bleached oak treads.
Photo © Todd Mason/Halkin Architectural Photography

Split-Level House
Qb³
Philadelphia, Pennsylvania
Photo © Todd Mason/Halkin Architectural Photography

Architects & Firms

Qb3

Philadelphia

The Northern Liberties neighborhood, just north of Center City in Philadelphia, used to be a decrepit Rust Belt remnant, but it now attracts the artist crowd. Over the past decade that crowd has come, stayed, become organized, and turned the neighborhood into a vibrant community that honors its local history while allowing a modern sensibility to permeate new design. Architect Kevin Angstadt, principal of Qb3, has completed three projects in the neighborhood, and he says his latest, Split-Level House, could not have been accomplished without the forward-thinking neighborhood association of Northern Liberties.

“The people on the board are artists, architects, contractors, and others who have an interest in maintaining the integrity of the area while encouraging investment,” he says.

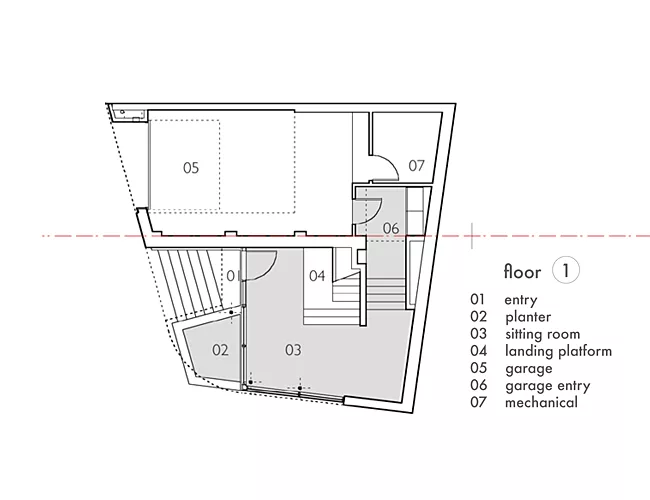

For Split-Level House, built on a small corner lot where a hotel was located some 30 years ago but which has been vacant since, Angstadt, his client, and the board wanted a design that would give a respectful nod to that long-gone building and its curved facade, and would reaffirm a relationship to the two streets meeting at the corner. Angstadt’s client had minimal demands — a three-bedroom house that could accommodate a future family while also providing a garage.

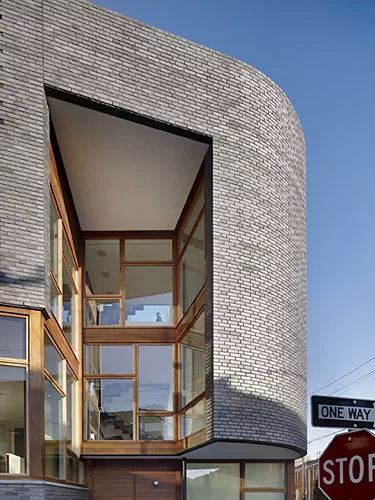

The neighborhood board agreed to 100 percent lot coverage, and Angstadt designed a three-story brick building with a sod roof to modulate groundwater runoff. He decided on gray brick for the bullnose facade to offset the mahogany windows and sapele wood cladding — a modern treatment that still defers to the surrounding redbrick and stone buildings. The wood cladding turns the corner from east to north: In front, the corner under the overhanging bullnose is glazed, giving passersby hints of the many levels within.

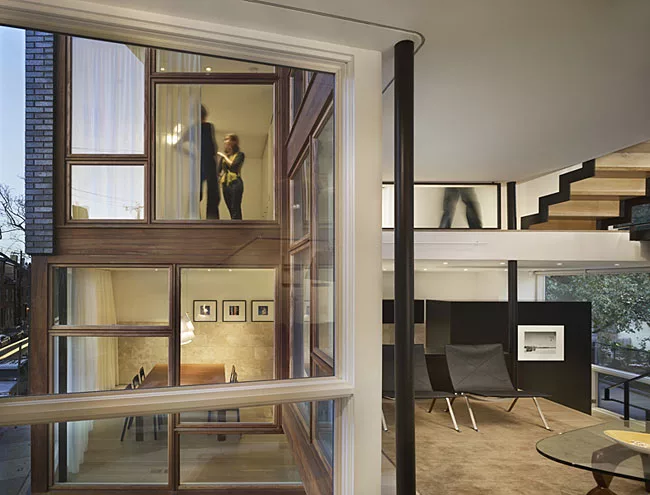

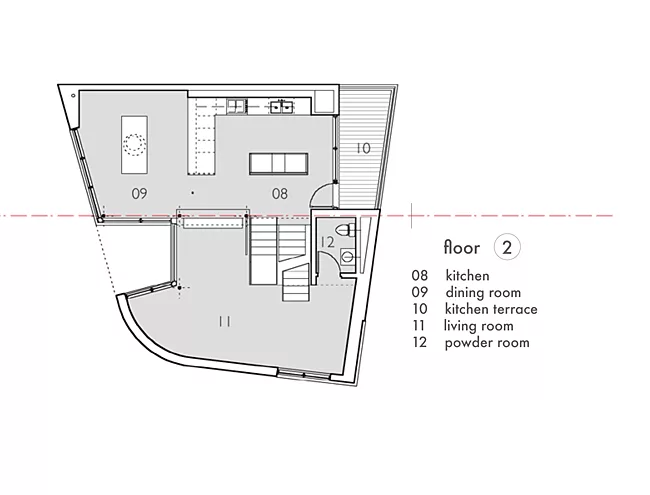

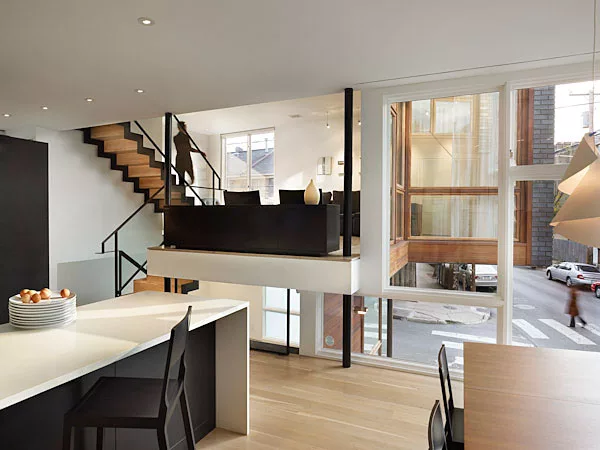

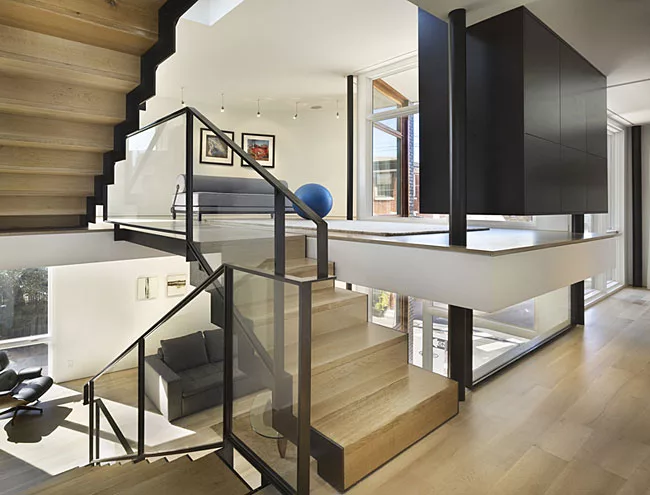

The name “Split-Level” refers to the parti, an elaboration on a typical suburban split-level house. Angstadt wanted to transform the mundane split-level by creating a series of platforms where spaces within each room would expand vertically as well as horizontally. Inside the house, structural support is evident only in the six skinny steel columns on each floor — columns that serve to stitch together the varying levels and allow living spaces to open up to each other on the bottom two floors.

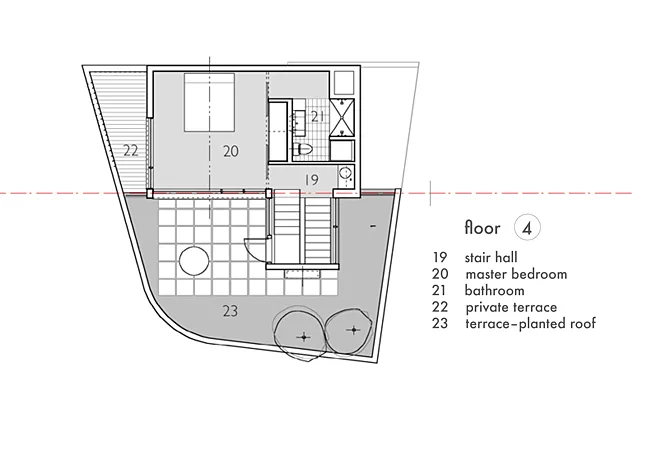

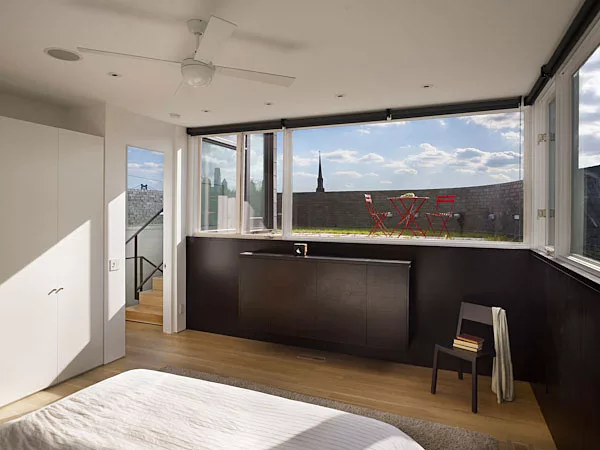

The third level is the only space not readily visible from another room in the house. The homeowner’s private sanctuary, this master suite is lower than the surrounding outdoor terrace/green roof, which wraps around the house and is sheltered by the brick parapet. Anthracite zinc clads the exterior walls of the master suite, marking it as a private pavilion separate from the rest of the house.

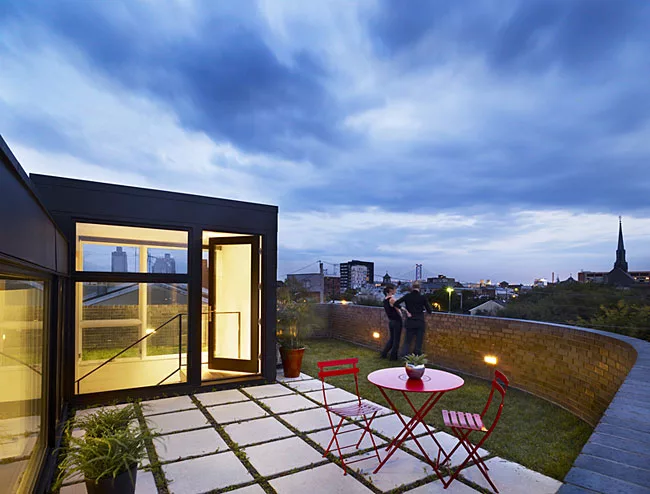

With views from the rooftop garden of Center City, the Ben Franklin Bridge, and the bustling neighborhood all around, the house allows its inhabitants to feel part of its urban surroundings. This is brotherly love at its finest.
