San Francisco, California

Site size: 2,500 sq. ft.

Project size:1,800 sq. ft. (front unit, including garage), 1,400 sq. ft. (rear unit)

Program: On the site of an 850-square-foot cottage from the early 1900s, the architects sought to create two new compact, modern, single-family homes in an architecturally conservative area.

Location: San Francisco's Noe Valley neighborhood

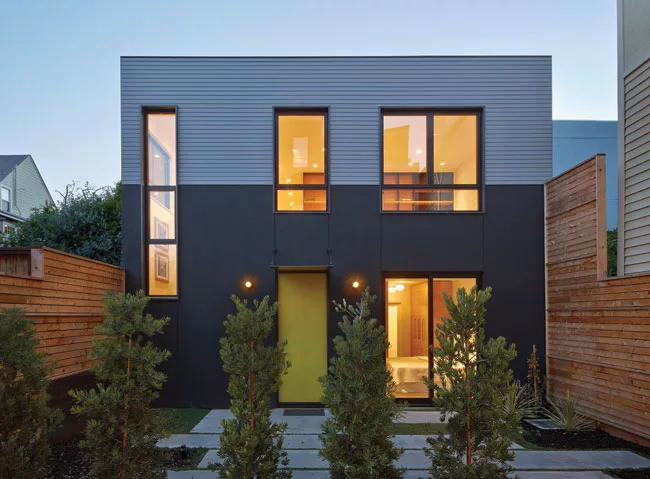

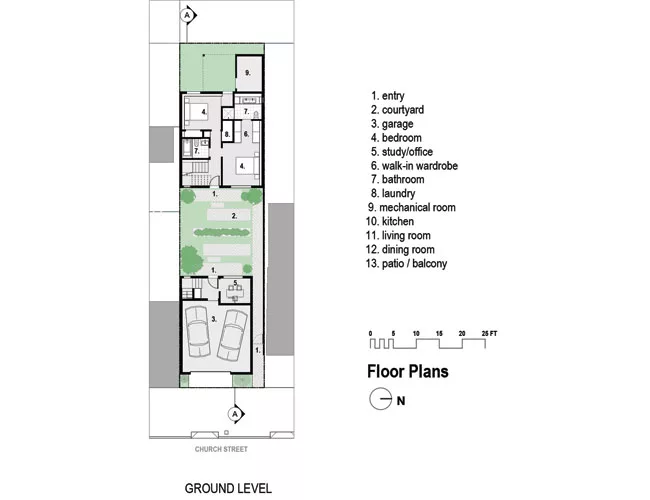

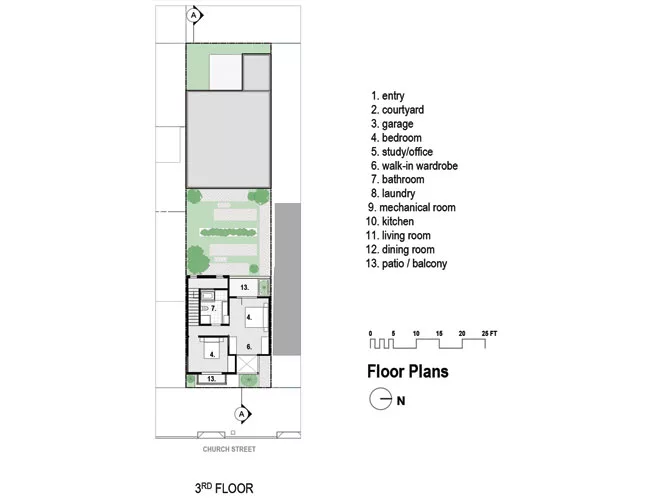

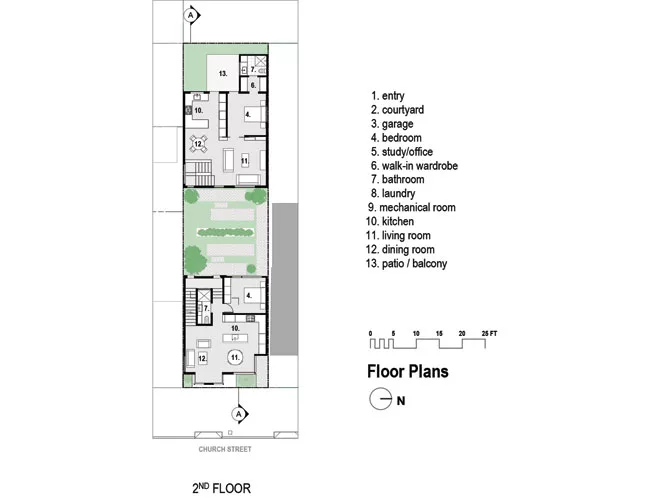

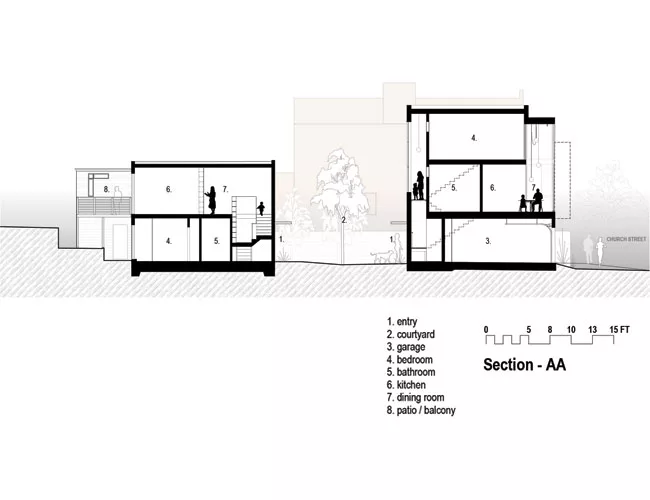

Solution: The architects built two detached three-bedroom townhouses, 1,400 square feet each, with a ground floor garage in the unit facing the street. A courtyard separates the front building, which has a main living area on the second floor and sleeping quarters on the third, from the rear, two-story house, with living areas on the top floor and sleeping quarters on the ground floor.

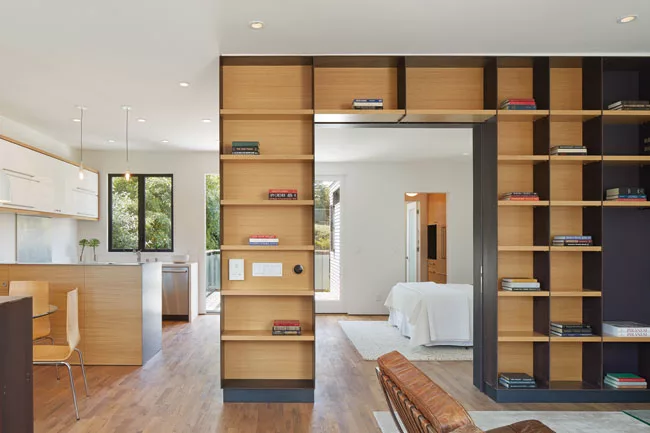

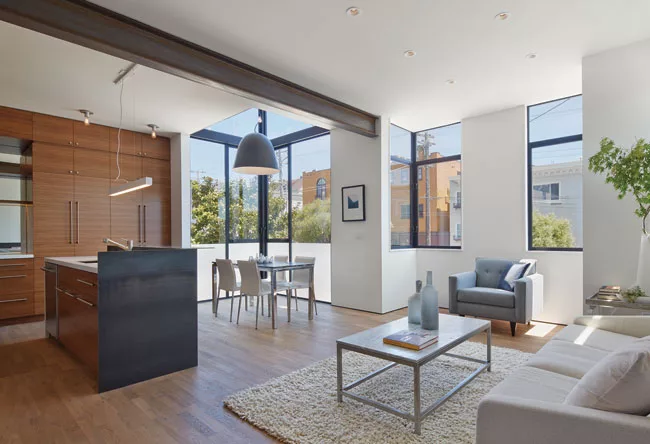

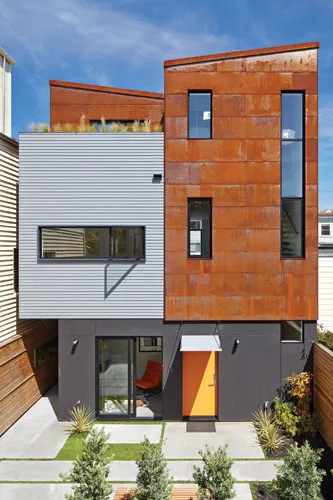

Construction and materials: The wood-framed structures are clad in Cor-Ten, with cement stucco and wood siding. Inside, the architects used drywall with floors of either wood or tile.

Architect:
Zack/de Vito Architecture + Construction
Jim Zack (principal in charge and architect of record) and Lise de Vito (associate designer)
Zack/de Vito Architecture + Construction
156 South Park
San Francisco, CA  94107
(415) 495-7889
zackdevito.com

People

Total project cost:  $2,400,000

Total construction cost: $1,450,000

Client: Architect led development project, owned by the architect

Owner: Jim Zack, Lise de Vito and Bruce wickstrom

Architect:
Zack/de Vito Arcitecture + Construction
156 South Park
San Francisco, CA  94107
t. 415.495.7889
f. 415.495.7869

Personnel in architect's firm who should receive special credit:
Principal in charge and architect of record: Jim Zack
Associate designer: Lise de Vito

Project Team: Ryan Knock, Darren Hodies

Interior designer:  By Architect

Engineers:
Structural: Don David, Double D Engineers, San Francisco

Consultant(s):
Landscape: By Architect- Lise de Vito

Lighting: By Architect

General contractor: Zack/de Vito Architecture + Construction

Photographer(s):
Bruce Damonte
415.845.6919
bruce@brucedamonte.com

Paul Dyer
415.640.0810
paul@dyerphoto.com



Products

Structural system
Type V wood frame and concrete foundation

Exterior cladding
Metal Panels:  Weathering Steel (corten), custom by architect, material from Western States Roofing

Wood: Custom mill cedar T & G

Moisture barrier: Vaproshield

Other cladding unique to this project:  Cement stucco with Drive-it acrylic color coat

Roofing
Built-up roofing: Certin-teed torch Down

Windows
Metal frame:  Aluminum thermally broken by All weather Aluminum;  Fire rated steel by Fyre-tec

Glazing
Glass: Custom shower glass and guardrail glass by Architect

Skylights: Velux

Doors
Entrances: Custom wood doors

Metal doors: Custom entry gate by architect

Wood doors: Custom wood interior doors

Hardware
Locksets: Omnia

Pulls: Sugatsune; Outwater Plastics

Interior finishes
Cabinetwork and custom woodwork:  Ikea and Custom by architect

Paints and stains: Sherwin Williams

Solid surfacing: Generic Quartz counters from Cornerstone

Floor and wall tiles: Walls- Dal Tile; Floors-Irridium More

Special interior finishes unique to this project: Engineered wood floors- Berg & Berg

Lighting
Interior ambient lighting: Tech Lighting; West Elm; Philips; Artemide; Sonneman

Downlights:  Halo

Exterior: RAB
