Houston

People/Products

Anchoring the western end of Rice University's main quad in Houston, James Turrell's new 118-foot-square Skyspace emerges from the earth (or lands from the heavens, depending on how you see it) in front of the monolithic Shepherd School of Music. “This is architecture that light and space makes,” explains the artist. When the sun illuminates the atmosphere, you can't see through it to view the stars that are there, he points out. “Light not only reveals, it also obscures—so you can actually build a space with it. I use light and architecture in that way: to limit space and to reveal it, either way.”

Turrell started his series of Skyspaces—enclosed rooms with an aperture open to the sky—in the 1970s, and to date he has created 73 across the world. In the early days, he would often make his works by cutting through existing buildings, such as his Meeting at New York's MoMA PS1. But, to avoid irritating architects, as he says (and perhaps being irritated by them as well), he graduated to creating autonomous structures: buildings with holes designed in them, and no real function, much like a folly or gazebo.

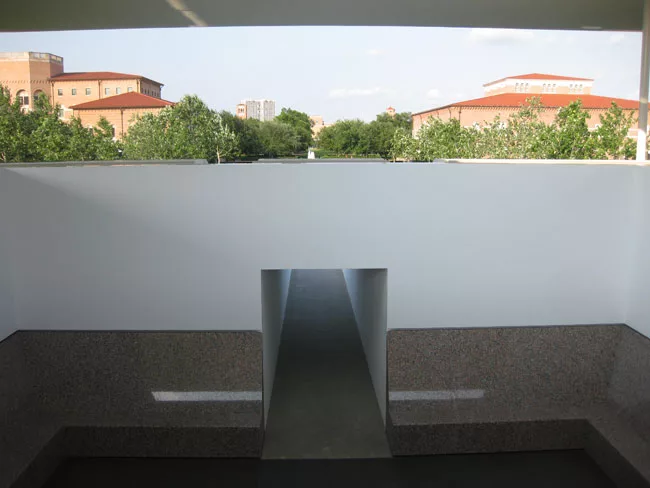

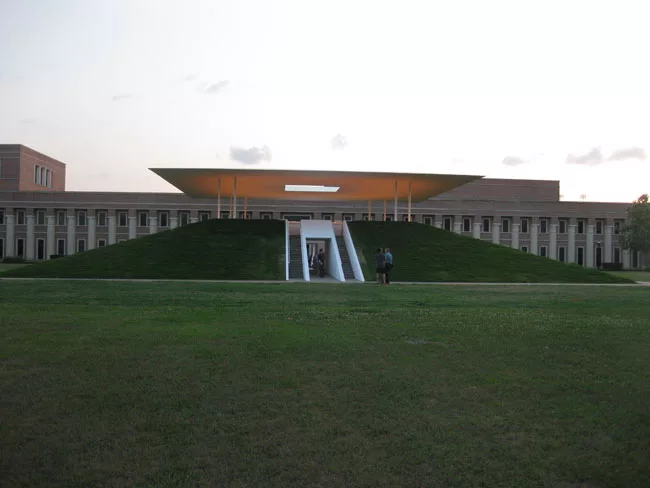

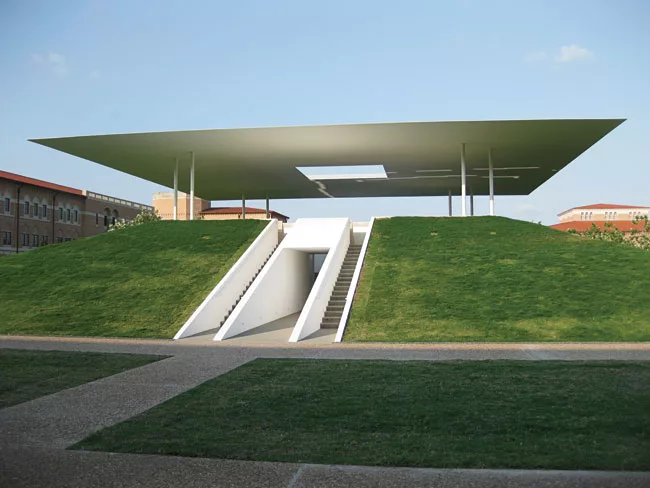

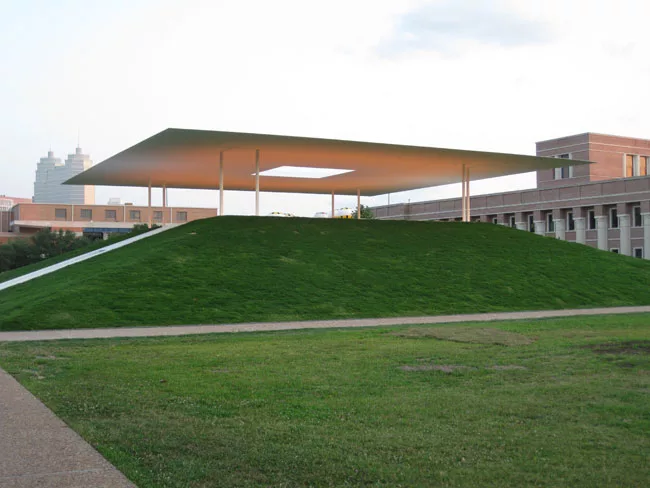

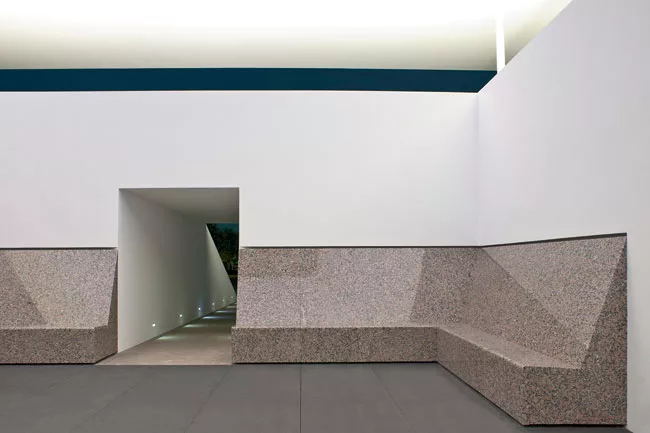

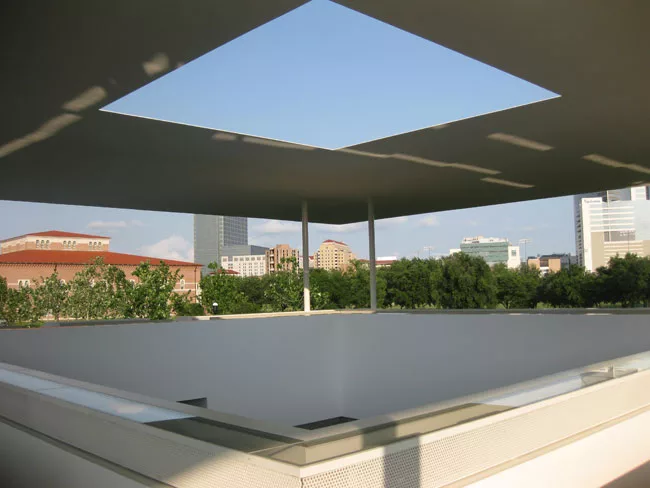

Dubbed Twilight Epiphany, Turrell's piece at Rice is composed of a 12-foot-8-inch-high grass berm that rises against the backdrop of the campus's neo-Byzantine brick academic quads. The truncated pyramid form, which employs a concrete structure below and steel columns above, is topped with a 72-foot-square conventional membrane roof with a steel-plate knife-edge and a 14-foot-square aperture at its center. A lower-level seating area accommodates 44 people and features the artist's trademark benches, made of Texas pink granite. Precast-concrete seating for 76 occupies the upper viewing area, where LEDs are installed for the two daily light shows programmed to correspond with sunrise and sunset. Made possible by a gift from Rice trustee and alumna Suzanne Deal Booth, who suggested the university work with Turrell, the Skyspace is the artist's first engineered for sound (he worked with the music school to develop the concept), and it will host a variety of performances, some specially created for the space.

Despite—or perhaps because of—Turrell's adroitness at building with light, the most ethereal of materials, the artist needed to be brought down to earth to actually realize his creation. And though the piece is first and foremost considered an artwork, “you have this thing you enter, so it is an architecture, and it's going to be legally treated as a building—I understand that,” says the artist, who admits he does not deal well with such realities as code, and was hoping to dispense with handrails and step lights in this case. Addressing the need for an architect, the university paired up Turrell with New York–based Thomas Phifer and Partners, a natural choice since the university had previous experience with Phifer. The match was not a hard sell for the artist: Turrell, who has worked with many different architects, says he designed Twilight Epiphany to respond to Phifer's airy Brochstein Pavilion, a few hundred yards down the quad. “I wanted it to have a feeling of mass that came out of its landform, but I also wanted to make this thin plane that floated in the sky,” he says. “I wanted to do a piece that offset Tom's—something that had a certain lightness, because his structure has this elegant lightness.”

“We took James's drawings and we turned them into something,” says Phifer, who has worked with numerous artists over the years and was happy to add Turrell to the roster. Not surprisingly, Turrell was very particular about the dimensions and scale of the room, the height the roof rose above the berm, the exact size of the opening, and the precision of the knife-edge, says the architect. “All of those details he's been doing for most of his life—it's a huge part of this work. The result is hypnotic. You're taken to another place.”

Phifer, known for the central role of light in his work and the precision of his own detailing, ensured that Turrell's intentions were preserved by finessing the technical aspects, such as stiffening the structure so it can stand up to hurricane-force winds, and preventing the roof's sharp edges from warping in the heat and humidity by using analysis to determine steel plate thickness (as well as specifying radiant barrier paint). And, of course, he tackled the code. It's all about managing these invasions so they do not become the focus. “It takes just one of those little moments to get jerked back to reality in a space like this,” notes Phifer. This shared understanding about the transformative potential of the built world underlies the strength of the pairing of artist and architect. “Though my work may not inform architecture, it can inform an architect about how we perceive,” says Turrell. “My interest is working in this space that we inhabit, which is not always the physical space that we have built.”

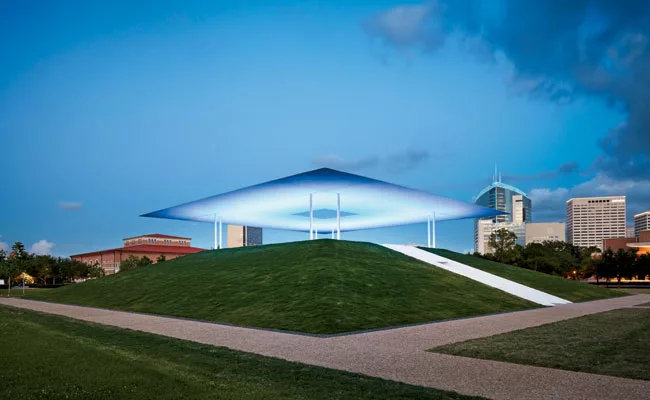

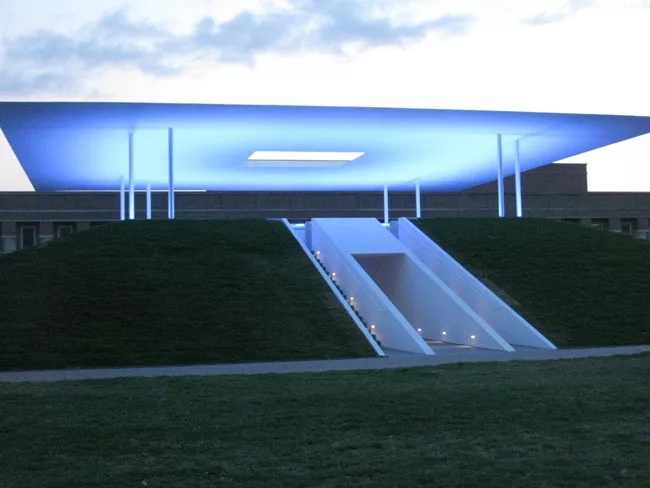

During the day, Twilight Epiphany gleams, a beautiful object offering an intriguing pause against the columned facade of the aggressively Postmodern Ricardo Bofill music school. As night falls, the colors projected on the levitating white canopy shift in juxtaposition to those in the sky. The frame brings passing objects into surreal focus—a cloud, a plane, a bug—and the walls dissipate, leaving you to consider the multitude of possibilities beyond.


People

Owner: Rice University

Artist: James Turrell

Technical Architect:
Thomas Phifer and Partners 180
Varick Street, 11th Floor
New York, NY 10014

Technical Architect Personnel:
Thomas Phifer, FAIA Eric Richey Anja Turowski

Engineer(s):
Structural Engineer:
Skidmore, Owings, and Merrill LLP
224 South Michigan Avenue
Chicago, IL 60604

MEPF Engineer:
Altieri Sebor Wieber LLC
31 Knight Street
Norwalk, CT 06851

Geotechnical Engineer:
Ulrich Engineers
2901 Wilcrest Street, Suite 200
Houston, TX 77042¬6010

Civil Engineer:
Walter P Moore
1301 McKinney, Suite 1100
Houston, TX 77010

Consultant(s):
Landscape:
The Office of James Burnett
3313 D’Amico Avenue
Houston, TX 77019

Lighting:
Baltic Studio Matthew Schrieber
106 Baltic Street
Brooklyn, NY 11201

Acoustics/AV Consultant:
Arup Acoustics
155 Avenue of the Americas
New York, NY 10013

Specification:
Construction Specifications
PO Box 488 22 Tennent Road
Morganville, NJ 07751

Code:
Rolf Jensen & Associates
13831 Northwest Freeway, Suite 330
Houston, TX 77040

Graphics:
Piscatello Design Centre
330 West 38th Street, Suite 1005
New York, NY 10018

General contractor:
Linbeck Group LLC Bob Wight, Tom Butler, Ed Durham, Daylin Mitchell, Matthew Schultz 3810 West Alabama Houston, TX 77027

CAD system, project management, or other software used: ACAD

Completion date:

June 2012



Products

Exterior cladding
Precast concrete: Dee Brown, Inc

EIFS, ACM, or other: Parex

Moisture barrier: Tremco

Stucco: Parex

Roofing
PVC: Johns Manville

Windows
Wood frame: Metal frame:

Glazing:
Glass: PPG Starphire

Doors
Metal doors: Door King

Hardware
Closers: Rixson

Exit devices: Locknetics

Security devices: Security Door Controls

Interior finishes
Stone Flooring: Cold Spring Granite

Furnishings
Stone Benches: Cold Spring Granite

Speakers: Amina

Lighting:
Interior ambient lighting: Feno

Add any additional building components or special equipment that made a significant contribution to this project:
Mechanical Subcontractor: Letsos Company

Electrical Subcontractor: Capp Electric

Steel Fabricator: Berger Iron Works

Glazing/Misc Metals: Berger Iron Works

Steel Erector: Milestone Metals, Inc

Stone/Precast Installer: Dee Brown, Inc

Stucco Installer: Baker Triangle

Cast-in-Place Concrete: TAS Commercial Concrete

Earthwork: AYG Construction, LTD

Waterproofing: L.S. Decker Inc

Roofing: Chamberlin Roofing and Waterproofing
