Project size: 16,600 square feet

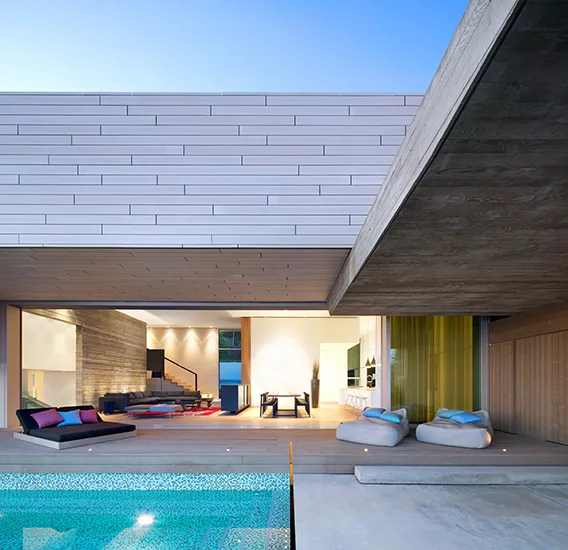

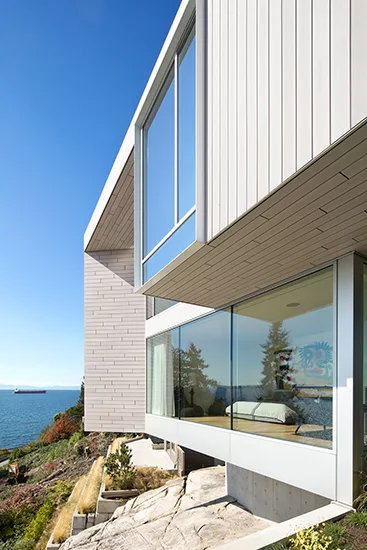

Program: Situated on a very steep and technically challenging site, the house was designed for a family of four to capture expansive views of the harbor and heavy marine traffic along the jagged West Vancouver coastline. Direct connections between the main living spaces and an outdoor terrace and pool areas were critical.

Location: Vancouver, BC, Canada

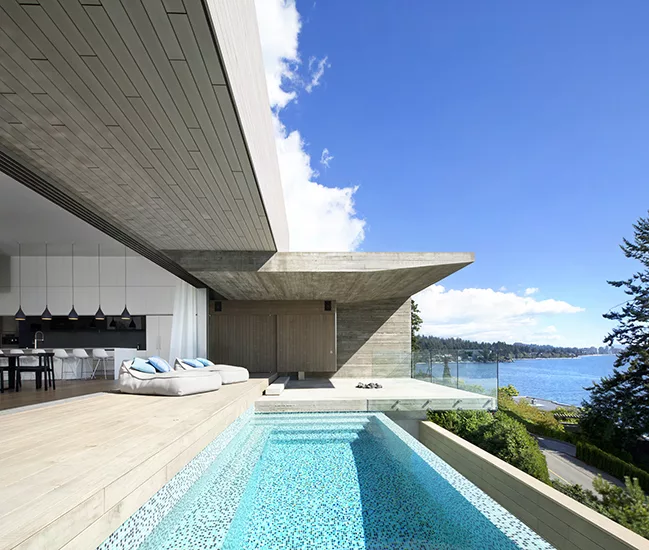

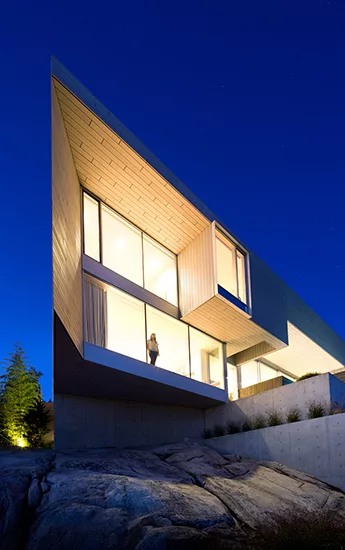

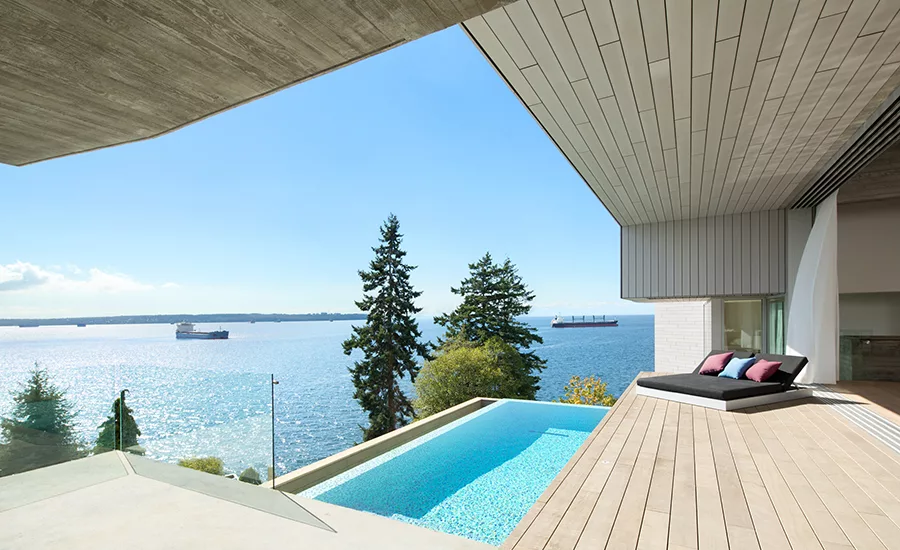

Solution: The building’s irregular shape traces the site boundary, coming to an angled blinder that provides privacy from tight adjacent properties. Movement into and through the house is carefully choreographed to disguise the considerable elevation change from street to living space—no individual stair run is greater than 1/2 story, allowing an unobstructed sightline from the oversized pivot entrance door through to the rear deck. Similarly, the split level arrangement allows for generous volumes in the main living spaces and a closer connection between the upper and main floor, while also providing dramatic elements such as the 40-foot elevation drop from the suspended deck and plunge pool to the rear garden below.

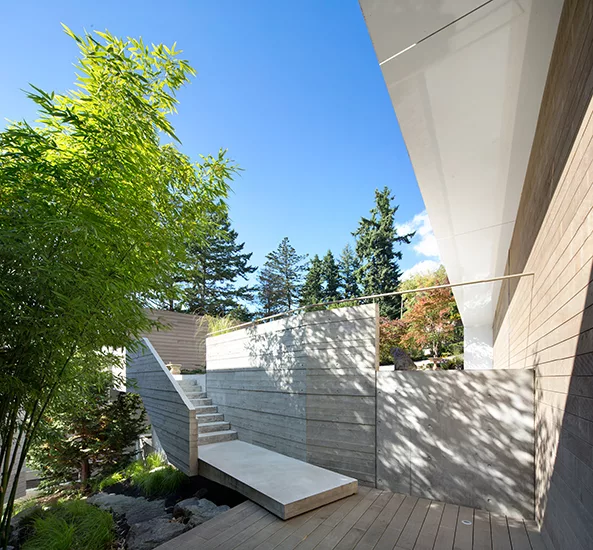

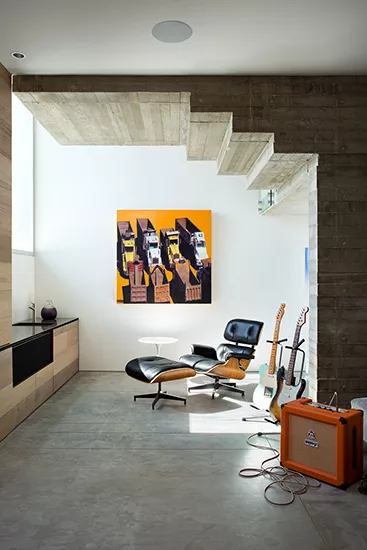

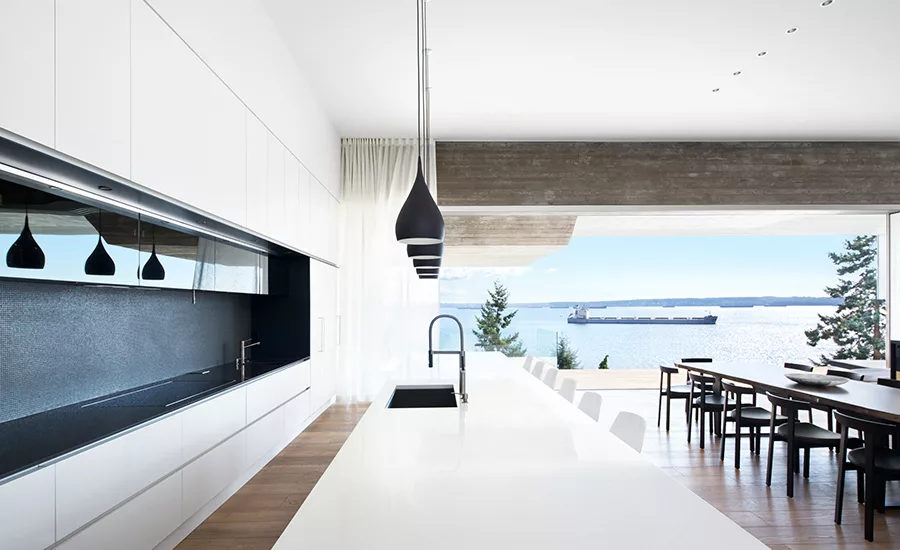

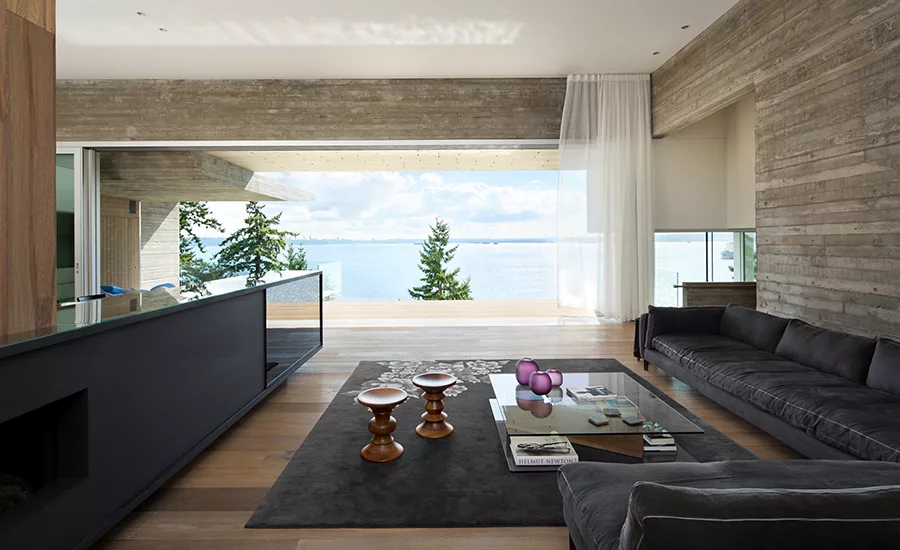

Construction and materials: The home has a cave-like feeling due to its predominantly concrete construction, with carefully carved spaces that feel intimate yet expansive. Limited materiality creates a meditative and calming experience, with contrast between solid and soft elements throughout. Board-formed concrete mimics the texture of the wood siding both on the exterior and interior of the home—its directionality is used to either elongate surfaces or emphasize double height spaces between floor levels. White leather pulls on white millwork are juxtaposed with carved wood handrails and wide plank oak flooring. The palette was stripped to the essentials, allowing the home to feel cohesive and solid.



Additional Information

Completion date: 2015

Gross square footage: 7,900 square feet

Total project cost: Withheld

Client/Owner: Withheld




Credits

Designer:

Mcleod Bovell Design
293 Columbia Street
Vancouver BC
Canada
V6A2R5
tel. 1 604 338 5261



Personnel in architect's firm who should receive special credit:

Lisa Bovell (not registered)
Matthew Mcleod (not registered)



Engineers:

Structural: Wicke Herfst Maver Engineers (Dan Wicke)
Envelope: JRS Engineering (Ross Arbo)


General contractor:

Viewpoint Construction (Claudio Fischer)



Photographer:

Ema Peter Photography 604.789.6339







Specifications

Structural System

Reinforced concrete w/ both smooth and board-form textures on all three levels of the house including a concrete canopy and support at the roof level.

Steel frame construction (wide flange beams) with engineered wood infill.


Exterior Cladding

Metal/glass curtain wall: Atlas Meridian Glassworks custom curtain wall and sliding door systems.

Rainscreen: Vaprosheild "Revealshield IT" wall membrane

Precast concrete:

Wood: Accoya decking and siding throughout.

Other cladding unique to this project: Resyta siding utlizing a custom stainless clip system.


Roofing

Built-up roofing: 2-ply torch-on membrane by Soperma

Windows

Metal frame: Atlas Meridian Glassworks custom curtain wall and sliding door systems.

Glazing

Glass: Atlas Meridian Glassworks custom curtain wall and sliding door systems.

Doors

Entrances: Custom front ppivot door by Norton Installations.

Sliding doors: Atlas Meridian Glassworks custom sliding door systems.

Fire-control doors, security grilles:

Hardware

Locksets: FSB

Pulls: Custom stainless door pulls. Custom leather millwork pulls by designers.
