archimania

Memphis, Tennessee

People/Products

Located in an economically disadvantaged neighborhood of Memphis, the Christ Community Medical Clinic provides a range of medical services from prenatal to cancer care. The clinic’s owner, a nonprofit religious group, wanted a freestanding building whose design would infuse the area with an inviting, healing image—and catalyze future development and rejuvenation.

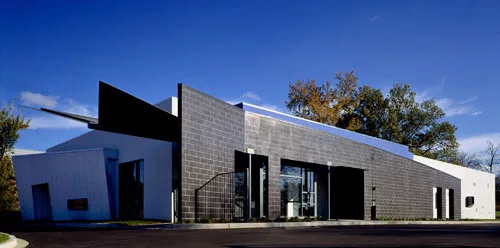

Remaining within a tight, $100-per-square-foot construction budget presented a challenge for archimania. Simplicity became key, both in the shape and layout of the building, and in the choice of cost-effective exterior and interior materials. Concrete block and corrugated metal siding comprise the exterior walls. While inexpensive, these materials blend well with the neighborhood’s existing vernacular.

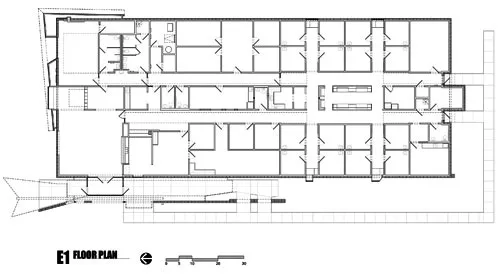

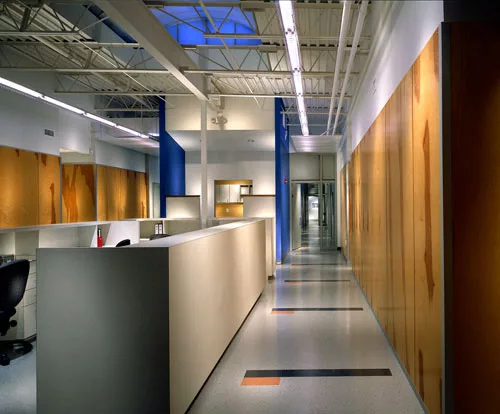

A large blue wall runs the length of the interior, dividing the building’s simple box shape in half. This divider houses shared utilitarian functions and it creates parallel circulation paths for patients and staff. For security reasons, the client sought to limit fenestration. To ensure that interior spaces receive as much natural light as possible, archimania designed a series of acrylic ceiling panels; the semi-translucent paneling maintains an airiness and connection to the sky. Above the main nurses’ station, a skylight provides daylight and creates a wayfinding beacon for the entire clinic.


People

Owner
Christ Community Medical Clinic

Architect
archimania
356 South Main Street
Memphis, TN 38103
901-527-3560 tel.
901-527-5018 fax
www.archimania.com

Interior designer
Interior Image

Engineer(s):
Civil/structural:
Askew Hargraves Harcourt & Associates

M/E/P:
Design/Build

General contractor
Grinder Taber & Grinder

Photographer(s)
Jeffrey Jacobs Photography
901-274-7632 tel.
jj@jeffreyjacobsphoto.com





Products

Structural system

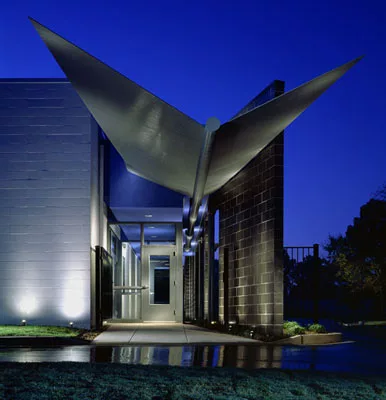

The structure is composed of concrete masonry unit bearing wall construction, with steel deck and bar joists and intermediate steel pipe columns. The entry wall is of polished face concrete masonry units and steel tube, sheltered by a plate steel canopy.

Exterior cladding
Masonry:
E. Dillon & Company Concrete Masonry Units www.edillon.com

Roofing
Built-up roofing:
Johns Manville www.jm.com

Windows
Aluminum:
Kawneer www.kawneer.com

Glazing
Glass:
PPG Industries www.ppg.com

Skylights:
Supersky Products www.supersky.com

Doors
Entrances:
Steelcraft www.steelcraft.com

Metal doors:
Steelcraft www.steelcraft.com

Wood doors:
Algoma Hardwoods www.algomahardwoods.com

Hardware
Locksets:
Solace

Hinges:
Stanley Hardware www.stanleyhardware.com

Closers:
LCN www.lcnclosers.com

Exit devices:
Von Duprin www.vonduprin.com

Cabinet hardware:
Knape and Vogt Manufacturing www.knapeandvogt.com

Interior finishes
Acoustical ceilings:
Armstrong Minaboard www.armstrong.com

Suspension grid:
Armstrong www.armstrong.com

Paints and stains:
Benjamin Moore www.benjaminmoore.com

Paneling:
Birch veneer plywood by Algoma Hardwoods www.algomahardwoods.com

Plastic laminate:
Formica www.formica.com

Special surfacing:
Vinyl composite tile

Floor and wall tile:
VCT by Mannington www.mannington.com

Furnishings
Chairs:
Eames Plywood Chair by Herman Miller www.hermanmiller.com

Lighting
Downlights:
Visa Lighting www.visalighting.com

Task lighting:
Visa Lighting www.visalighting.com
