MulvannyG2 Architecture

Redmond, Washington

People/Products

Like many fast-growing suburbs, Redmond, Washington, knew plenty about constructing roads and fire stations but little about making civic buildings. Home to both Microsoft and Nintendo, this town—16 miles east of Seattle—saw its population jump by nearly one third, to 46,000 people, in the past 20 years. At the same time, the city’s staff more than doubled, growing into seven different facilities. Operational efficiency demanded consolidation. But the design-bid-build process, once the norm for civic facilities, carries financial and political risks in today’s environment of spiraling construction costs. So Redmond chose a path increasingly popular with municipalities nationwide: forming a nonprofit corporation that finances and constructs a building, then leases it back to the city.

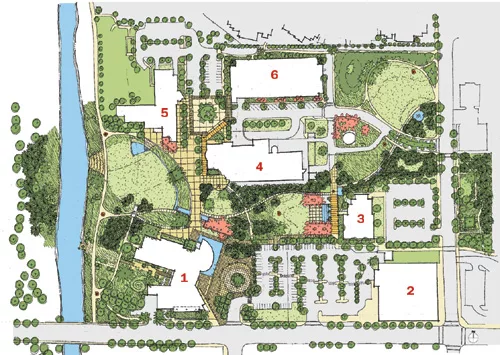

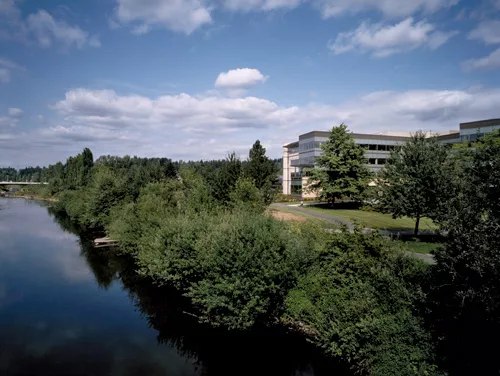

The client wanted a new gateway municipal facility located on the main arterial road. Part of an existing 17-acre government campus, the site abuts the Sammamish River and 10 acres of open space that the city will turn into a park. The program was simple: a 105-seat council chamber and offices for the 270-person municipal staff, with expansion space for 80 more people. The city also wanted the project to earn a LEED Silver rating.

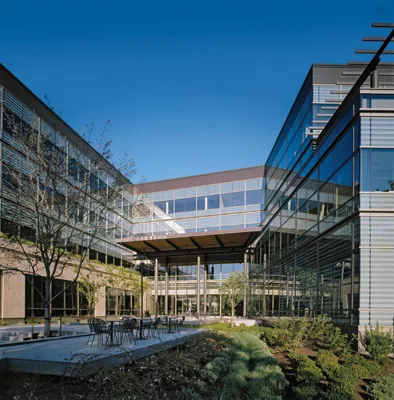

The city’s nonprofit Redmond Community Properties hired Wright Runstad & Company as a fee developer, which in turn held a design competition juried by its own staff, the mayor, and the city council. Unlike other finalists, who responded with boxlike structures, MulvannyG2 split its building into two steel-framed wings, one oriented south to face the main road, the other toward the river. A double-height lobby connects them, offset at one corner by an asymmetrical, drum-shaped council chamber.

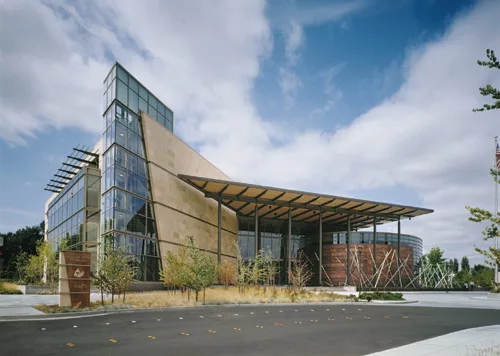

Lead designer Ming Zhang hoped to create “a new, 21st-century image for government,” an environment that projects both dignity and the friendly informality epitomized by Redmond’s culture of boundary-busting innovation. A grand, three-story colonnade with a wide canopy roof defines the main entry: Pivot joints connecting its steel columns offer playful, erector-set versions of capitals and bases, while soft Algerian sandstone clads the facade along this elevation. By contrast, the building’s roadside face is covered in precast stone, dignified enough for passing cars but without real stone’s cost.

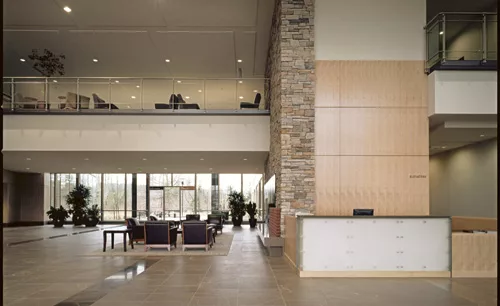

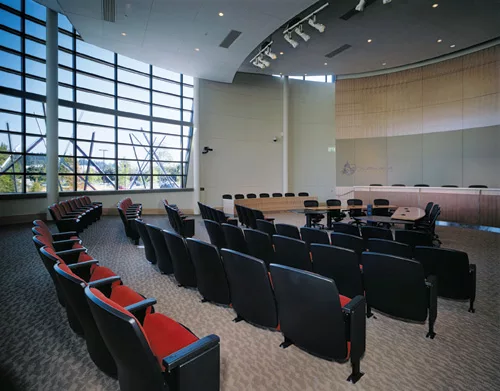

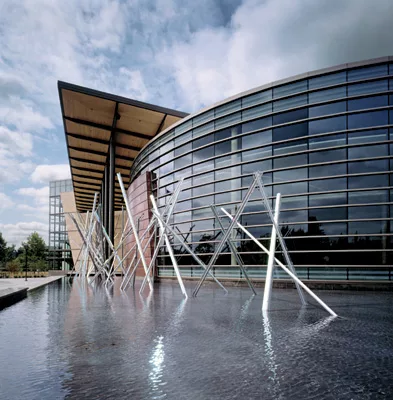

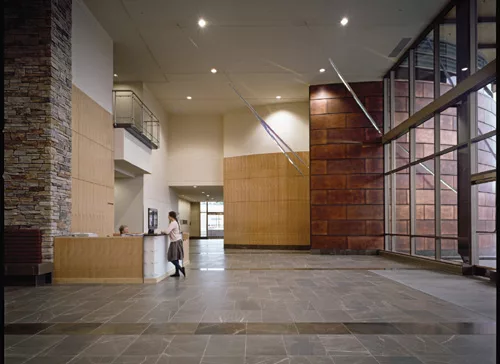

The council chamber volume stands almost as a separate entity at the building’s northeast corner. Copper panels facing the entry signal “civic importance,” while a floor-to-ceiling glass curtain wall, facing the park, lets soft northern light into the chamber and symbolizes government transparency. Zhang’s overarching goal was to “link humans to nature.” Accordingly, the lobby brings some of the building’s grand exterior scale indoors.


People

Owner

Redmond Community Properties, a subsidiary of the National Development Council

Architect

MulvannyG2 Architecture
1110 112th Ave. NE, Suite 500
Bellevue, WA 98004
425-463-2000 tel.
425-463-2002 fax
www.mulvannyg2.com

Design principal/lead designer:
Ming Zhang

Project manager

David Glassman

Project architect

Peng Liew

Project designer

Peter Lian

Interior designer

Public space designed by MulvannyG2 Architecture; office space designed by Perrault Interiors www.perraultinteriors.com

Engineer(s)

Mechanical:
MacDonald-Miller Facility Solutions www.macmiller.com

Electrical:
Sasco www.sasco.com

Civil & Structural:
Magnusson Klemencic Associates www.mka.com

Consultant(s)

Landscape:
Hewitt Architects www.hewittarchitects.com

Lighting:
Lighting Group Northwest www.lightinggroupnw.com

Acoustical:
JGL Acoustics www.jglacoustics.com

Furniture dealer:
MBA Systems

Exterior artwork:
Ed Carpenter www.edcarpenter.net

Construction manager:
Wright Runstad & Co. www.wrightrunstad.com

General contractor

Lease Crutcher Lewis www.lewisbuilds.com

Photographer(s)

Robert Pisano
www.pisanostudio.com



Products

Structural system

Composite slab and steel beam system

Exterior Cladding

Metal/glass curtainwall: Aluminum composite panels by Alpolic www.alpolic-usa.com

Concrete: Algerian sandstone and yellow mountain granite stone-faced pre-cast panels

Roofing

Elastomeric: Sarnafil G410 EnergySmart roof membrane www.sarnafilus.com

Windows

Aluminum: Walters and Wolf aluminum-framed curtainwall system www.waltersandwolf.com

Glazing

Insulated panel or plastic glazing:
Viracon low-E insulating glass www.viracon.com

Doors

Entrances: Walters and Wolf all-glass entrances and aluminum-framed entrances www.waltersandwolf.com

Metal doors: Curries hollow metal door frames www.curries.com

Wood doors: VT Industries stile and rail wood doors www.vtindustries.com

Special doors: Wayne Dalton model K-A1 sectional door www.wayne-dalton.com

Hardware

Locksets:
Assa Abloy www.assaabloy.com; Sargent www.sargentlock.com

Hinges: McKinney www.mckinneyhinge.com

Closers: Sargen twww.sargentlock.com

Exit devices: Sargent www.sargentlock.com

Security devices: Allied Security www.allied-security.com

Cabinet hardware: Parrot

Interior finishes

Acoustical ceilings: Hunter Douglas Techstyle acoustical mat www.hunterdouglas.com

Suspension grid: Armstrong 704 Tegular www.armstrong.com

Cabinetwork and custom woodwork:
Figured western maple

Paints and stains

Transparent finish

Wallcoverings: Steel; KnollTextiles www.knoll.com

Paneling: Western maple

Plastic laminate: Wilsonart www.wilsonart.com; Pionite www.pionite.com; Nevamar www.nevamar.com; Arpa www.arpausa.com

Floor and wall tile: Limestone at lobby; Dal-Tile at bathrooms www.daltile.com

Carpet: Bentley Prince Street at auditorium and lobby www.bentleyprincestreet.com; Mohawk at Government www.mohawkcarpet.com

Furnishings

Office furniture: Herman Miller Ethospace www.hermanmiller.com

Reception furniture: Parrot

Fixed seating: Caper, Aside www.hermanmiller.com

Chairs: Herman Miller Mirra Chair www.hermanmiller.com; David Edward www.davidedward.com

Tables: Falcon www.commercialfurnituregroup.com; KI www.ki.com

Upholstery: Maharam www.maharam.com; Architex www.architex-lj.com

Lighting

Interior ambient lighting:
Lighting Group Northwest www.lightinggroupnw.com

Conveyance

Elevators/escalators:
ThyssenKrupp SBF 35-35 www.thyssenkrupp.com

Plumbing

Technical Concepts auto faucets www.technicalconcepts.com; Caroma USA Walvit toilets www.caromausa.com; Falcon water-free urinal www.falconwaterfree.com
