If it weren’t for the pint-size stature of its third, fourth, and fifth grade occupants—and the telltale sounds of recess—one would think the new classroom building at the Riverdale Country School in the Bronx, New York, was the custom headquarters of a startup. Like a startup, the new Upper Learning Building by the New York–based firm Architecture Research Office (ARO) was designed with an entrepreneurial spirit, each detail meant to incubate ideas and foster innovative teaching and learning, with spaces scaled to the comfort and optimum productivity of its inhabitants.

Additional Information:
Jump to credits & specifications

Located on the progressive private school’s lower-school River Campus, which is nestled between the Hudson River and the 28-acre public garden called Wave Hill, ARO’s new structure for Riverdale’s older elementary school students is a low-slung, two-story rectangular volume that hugs a hill on both its eastern and northern elevations.

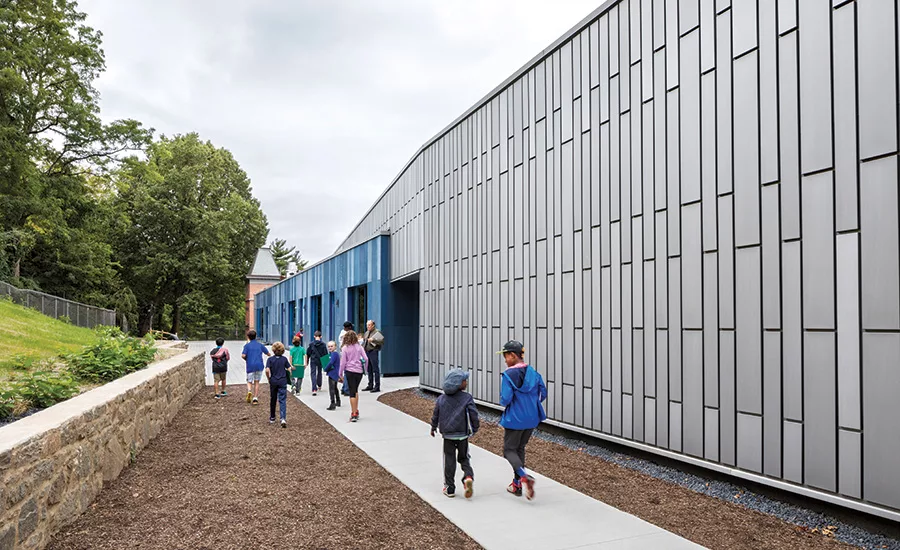

(The Hill Campus, to the northeast, accommodates the middle and high schools.) A skirt of vertical zinc panels drapes the building’s northern end and the second story. The first floor is clad in lightweight, ultra-high-performance blue concrete panels of varying textures. The muted colors are a nod to the river and the sky.

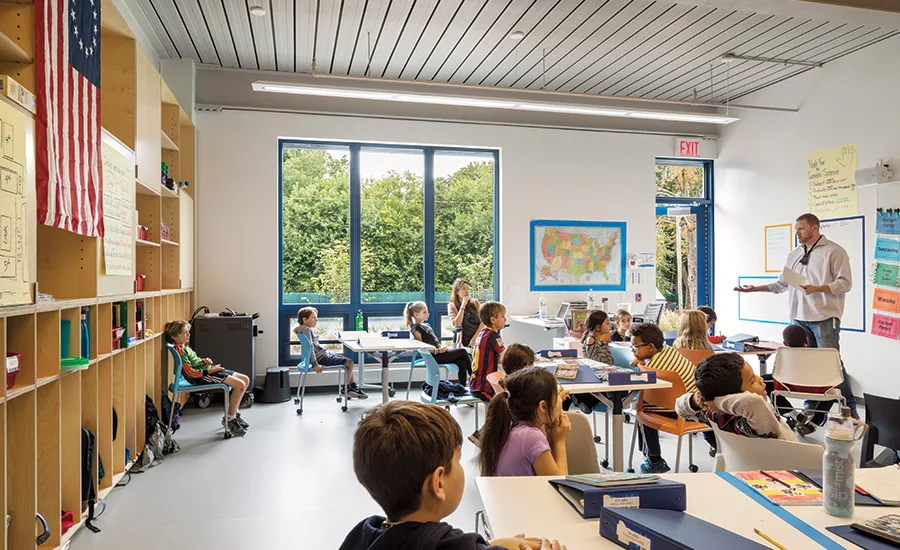

Floor-to-ceiling windows and glazed entrances in the west-facing ground floor classrooms allow students to catch glimpses of the river, while deeply set openings on the second floor maximize light and views. “We liked the idea of students hanging out in the windows,” says ARO principal Stephen Cassell, who led the project with principal Kim Yao. At Riverdale, the outdoors is an important part of the curriculum, so the architects created a patio and path beside a grassy slope to the east. Classrooms there have doors that lead directly outside as well. (The architects worked with Matthews Nielsen Landscape Architects.)

The 23,000-square-foot building replaces an impermeable 1967 structure in the same site, which was universally disliked. Originally built for high school students, it had enfilade classrooms and expressed “sixties teaching values,” says headmaster Dominic A. A. Randolph. More recently, the old building housed an unwieldy library and a mix of prekindergarten, fourth-, and fifth-graders. The lower school’s cafeteria was housed in a lowceilinged room in one of two mid-to-late 19th-century houses—originally part of the Wave Hill estate—that now flank the new building and contain offices and other programs. Even so, Randolph asked the architects to explore saving and adapting the existing building. In the end, “it still wouldn’t meet our baseline, with right-sized classrooms near each other,” says Cassell. So the existing structure was razed, and, to house the students in the interim, ARO collaborated with the Rockwell Group to create a playful temporary campus by customizing 13 trailers (RECORD, January 2016).

As part of its scope, ARO was asked to help Riverdale with its master plan and programming, and to spiff up spaces in other lower-school buildings. Like many school campuses, Riverdale is a hodgepodge of styles and eras. The new building is “low and respectful of the two houses,” says Yao, and shows deference to the surrounding landscape.

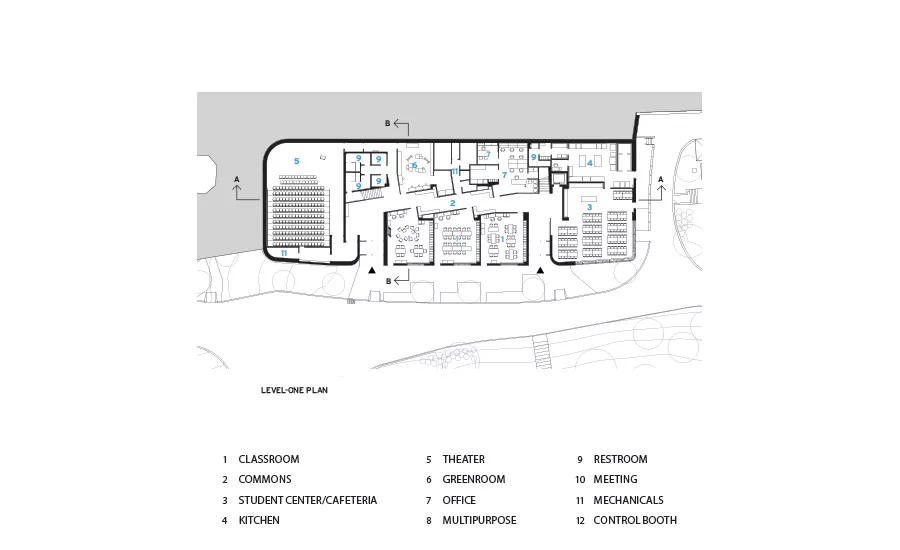

In contrast to its predecessor, the new Upper Learning Building is “like a learning organism that you wander around in,” says Cassell. He and Yao situated a multipurpose space at each end of the building—a glasswalled cafeteria to the south and a theater (still under construction at the time of publication) with retractable seating to the north—using them as a framework. The classrooms in between are connected by hallways that double as places for serendipitous moments of connection and teaching, with writable and tackable walls. A large multipurpose room on the second floor is also a work in progress.

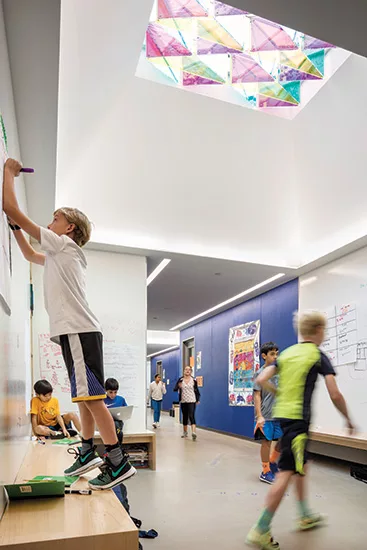

Throughout the building, ARO kept materials unfussy and durable, adding pops of blue in keeping with the sky and river theme. The architects worked with graphic design firm Open to inject otherwise blank surfaces with layers of learning opportunities. Four skylights on the second floor are made into teachable moments with graphics about the sun’s movement, while other bold visuals, such as the names of cities and countries, and even directionals, are spelled out in blue decals on the concrete hallway floors.

Design is very much at the heart of Riverdale’s philosophy. Randolph has been a vocal proponent of “design thinking” in schools and has forged an ongoing partnership between Riverdale and the global design firm IDEO, resulting in a downloadable Design Thinking Toolkit for Educators. The tool kit helps teachers through a process of research, ideation, and experimentation to solve challenges in classrooms—much the way a designer might in creating a better pair of scissors or a chair. In many ways, the new Upper Learning Building is design thinking writ large. It is a building born of exploration, deep discussions with educators about their needs and desires, and a willingness to tweak on the fly. “I’ve always believed that human-centered design is important and feeling is essential,” says Randolph, “but this is the first time I’ve seen these ideas realized to such an extent.”


Credits

Architect:

Architecture Research Office
170 Varick Street 7th Floor
New York, NY 10013
Phone: 212.675.1870
Fax: 212.675.1645



Personnel in architect's firm who should receive special credit:

Principals-in-Charge: Kim Yao, AIA; Stephen Cassell, AIA, LEED AP
Project Architect: Jejon Yeung, AIA LEED AP
Project Team: Yannik Neufang, AIA; Drew Powers; Jenny Hong; Nicholas Desbiens, AIA; Nora Yoo, LEED AP; David Sobol



Engineers

Structural Engineer - Robert Silman Associates
88 University Place, New York NY 10003
Joseph Tortorella, Principal; Geoff Smith, Project Manager

Civil Engineer - AKRF Engineers
440 Park Ave South, New York, NY 10016
Andrew Malek, Principal; Robert Caravella, Senior Vice President; Katie Gengler, Senior Project Engineer

MEP/FP/IT/Security Engineers - Buro Happold
100 Broadway, 23rd Floor, New York, NY 10005
Michael McGough, Principal; Chris Divall, Associate Principal; Simon Looi, Senior Project Engineer; Michael Marvin, Project Engineer (Energy Model); Howard Shapiro, Project Engineer (IT)

Consultants

Landscape Architect - Mathews Nielsen Landscape Architect
120 Broadway, Suite 1040, New York, NY 10271
Kim Mathews, Principal; Johanna Phelps, Project Manager

Graphics / Wayfinding Designer - Open
180 Varick Street, No. 822, New York, NY 10014
Scott Stowell, Principal; Jason Chan, Operator; Cat Kirk, Designer

Lighting Designer – Lighting Workshop
20 Jay Street, Suite 500, Brooklyn, NY 11201
Doug Russell, Principal; Megan Casey, Project Manager; Courtney Yip, Project Designer

Acoustics / Audio Visual – Threshold Acoustics
53 West Jackson Blvd., Suite 815, Chicago, IL 60604
Scott Pfieffer, Principal; Shane Kanter, Project Manager; Tim Perez, Consultant; Marcus Mayell, Consultant;

Theater Consultant – Stages Consultants
304 Grant Ave, Highland Park, NJ 08904
Alec Stoll, Principal; Micah Rahn, Consultant

Envelope Consultant - Simpson Gumpertz & Heger
550 Seventh Ave, New York, NY 10018
Vince Cammalleri, Senior Principal; Amrish Patel, Senior Technologist



General contractor:

Shawmut Design & Construction



Photographer:

JAMES EWING, 646.339.2654, Esteban Kuriel, 347.463.6619



Specifications

Structural System

Steel frame, concrete retaining wall, composite deck

Exterior Cladding

Metal/glass curtain wall: Kawneer 1600

Rainscreen: Imetco Intelliscreen System, Zinc Element Panels
Taktl High-Strength Pre-Cast Concrete Panels

Moisture barrier: Grace Perm-A-Barrier

Roofing

Sika Sarnafil G410

Windows

Metal frame: Kawneer Trifab VG451, Trifab VG451T, AA900

Glazing

Glass: PPG Solarban 60; Guardian SN68

Skylights: Velux FCM

Ballistic Glazing: U.S. Bullet Proofing
Fire-Resistant Glazing: SaftiFirst GPX Architectural Framing with SuperLite II-XL

Doors

Entrances: Kawneer 425, 350

Metal doors: Curries

Rolling doors: United Steel Products Model 300

Hardware

Locksets: Schlage; Adams Rite; Accurate Lock and Hardware

Closers: LCN

Exit devices: Von Duprin

Pulls: Rockwood

Other special hardware: Zero Gasketing; Pemko Gasketing

Interior Finishes

Cabinetwork and custom woodwork: Barlow Architectural Millwork LLC

Paints and stains: Sherwin Williams

Paneling: Homasote N.C.F.R.; Gypsorb Sonus; Tectum Interior Wall Panels

Plastic laminate: Pionite

Solid surfacing: Corian

Wall tile: Nemo Metro Solids (custodial, kitchen, pantry, restrooms)

Resilient flooring: Forbo Marmoleum; Tarkett Polyturf Plus; Roppe Pinnacle Rubber Wall Base

Carpet: Tandus Centiva

Writeable Wall Paint: IdeaPaint Create
Non-Slip Flooring: Dur-A-Flex Poly-Crete

Furnishings

Office furniture: Steelcase FrameOne Desking System

Reception furniture: Knoll Saarinen Chairs, Divina Sofas

Fixed seating: Irwin Seating Company – Theater bleachers

Chairs: Steelcase Move Chairs; KI Matrix Stacking Chairs

Tables: Coalesse Akira Tables; KI Barron Tables

Upholstery: Knoll Hourglass, Cato, Soliloquy, Framework

Lighting

Interior ambient lighting: Tech Lighting; Philips; Delray Lighting Incorporated

Downlights: USAI Lighting; Selux; Focal Point; Prudential Lighting

Exterior: Bega

Dimming system or other lighting controls: Electronic Theatre Controls

Conveyance

Elevators/escalators: Schindler Elevator Corporation

Plumbing

American Standard AFWall Millenium Toilets
American Standard Akron Service Sinks
Chicago Faucets
Duravit Lavatories
Elkay Water Fountains
Kohler Purist Faucets
Kohler Vault Sinks
Sloan Optima Plus Faucets

Energy

Energy management or building automation system: Alerton
